View In:   ArcGIS Online Map Viewer

Name: Fiber

Display Field: CableName

Type: Feature Layer

Geometry Type: esriGeometryPolyline

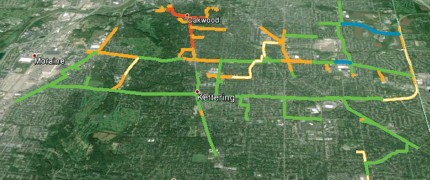

Description: Fiber cables were drawn using as-built and schematic drawings as provided by Kettering, Oakwood, and Centerville. Compiled by City of Kettering. Geometries are approximate, not to scale, and for illustrative purposes only. Network data used in Local Government Innovation Fund grant application September 2013.Last updated 2/25/2014 - Langdon Sanders, City of Kettering

Service Item Id: 2a50cf6e121c421cb59de244f0b887d4

Copyright Text: City of Kettering, City of Centerville, City of Oakwood

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: 1476525.2017841935
YMin: 591894.526049763
XMax: 1517324.0450551063
YMax: 636279.1406924427
Spatial Reference: 102723  (3735)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: InstallMethod
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
Style: esriSLSSolid
Color: [130, 130, 130, 255]
Width: 1
Default Label:
UniqueValueInfos:
• Value: 1
  Label: Underground
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [76, 230, 0, 255]
  Width: 2
• Value: 2
  Label: Aerial
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [74, 76, 199, 255]
  Width: 2
• Value: 3
  Label: Direct Burial
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [137, 68, 101, 255]
  Width: 2
• Value: 7
  Label: Drop Cable
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [255, 170, 0, 255]
  Width: 2
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: InstallMethod

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• Join_Count ( type: esriFieldTypeInteger, alias: Join_Count, editable: true, nullable: true, defaultValue: null, modelName: Join_Count )
• CableName ( type: esriFieldTypeString, alias: CableName, editable: true, nullable: true, length: 50, defaultValue: null, modelName: CableName )
• Location ( type: esriFieldTypeString, alias: Location, editable: true, nullable: true, length: 50, defaultValue: null, modelName: Location )
• InstallMethod ( type: esriFieldTypeInteger, alias: InstallMethod, editable: true, nullable: true, defaultValue: 2, modelName: InstallMethod , Coded Values: [3: Direct Burial] , [1: Underground] , [5: Proposed] , ...4 more... )
• Manufacturer ( type: esriFieldTypeString, alias: Manufacturer, editable: true, nullable: true, length: 100, defaultValue: null, modelName: Manufacturer )
• ManufacturerDate ( type: esriFieldTypeDate, alias: Manufacturer Date, editable: true, nullable: true, length: 8, defaultValue: null, modelName: ManufacturerDate )
• FiberCount ( type: esriFieldTypeSmallInteger, alias: Fiber Count, editable: true, nullable: true, defaultValue: null, modelName: FiberCount )
• SingleModeTotal ( type: esriFieldTypeInteger, alias: SingleModeTotal, editable: true, nullable: true, defaultValue: null, modelName: SingleModeTotal )
• SingleModeUsed ( type: esriFieldTypeInteger, alias: SingleModeUsed, editable: true, nullable: true, defaultValue: null, modelName: SingleModeUsed )
• SingleModeUnused ( type: esriFieldTypeInteger, alias: SingleModeUnused, editable: true, nullable: true, defaultValue: null, modelName: SingleModeOpen )
• MultiModeTotal ( type: esriFieldTypeInteger, alias: MultiModeTotal, editable: true, nullable: true, defaultValue: null, modelName: MultiModeTotal )
• MultiModeUsed ( type: esriFieldTypeInteger, alias: MultiModeUsed, editable: true, nullable: true, defaultValue: null, modelName: MultiModeUsed )
• MultiModeUnused ( type: esriFieldTypeInteger, alias: MultiModeUnused, editable: true, nullable: true, defaultValue: null, modelName: MultiModeOpen )
• FiberOwner ( type: esriFieldTypeInteger, alias: FiberOwner, editable: true, nullable: true, defaultValue: null, modelName: FiberOwner , Coded Values: [1: DPL] , [2: Kettering] , [3: N/A or None] , ...5 more... )
• PoleOwner ( type: esriFieldTypeInteger, alias: PoleOwner, editable: true, nullable: true, defaultValue: null, modelName: PoleOwner , Coded Values: [1: DPL] , [2: Kettering] , [3: N/A or None] , ...5 more... )
• Diameter ( type: esriFieldTypeDouble, alias: Diameter, editable: true, nullable: true, defaultValue: null, modelName: Diameter )
• InstallStatus ( type: esriFieldTypeString, alias: InstallStatus, editable: true, nullable: true, length: 50, defaultValue: null, modelName: InstallStatus )
• UniqueID ( type: esriFieldTypeString, alias: UniqueID, editable: true, nullable: true, length: 15, defaultValue: null, modelName: UniqueID )
• StreetDist ( type: esriFieldTypeString, alias: StreetDist, editable: true, nullable: true, length: 15, defaultValue: null, modelName: StreetDist )
• Material ( type: esriFieldTypeString, alias: Material, editable: true, nullable: true, length: 50, defaultValue: null, modelName: Material )
• TARGET_FID ( type: esriFieldTypeInteger, alias: TARGET_FID, editable: true, nullable: true, defaultValue: null, modelName: TARGET_FID )
• created_user ( type: esriFieldTypeString, alias: created_user, editable: false, nullable: true, length: 255, defaultValue: null, modelName: created_user )
• created_date ( type: esriFieldTypeDate, alias: created_date, editable: false, nullable: true, length: 8, defaultValue: null, modelName: created_date )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, editable: false, nullable: true, length: 255, defaultValue: null, modelName: last_edited_user )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, editable: false, nullable: true, length: 8, defaultValue: null, modelName: last_edited_date )
• Shape_STLength__ ( type: esriFieldTypeDouble, alias: Shape_STLength__, editable: true, nullable: true, defaultValue: null, modelName: Shape.STLength() )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, editable: false, nullable: false, length: 38, defaultValue: null, modelName: GlobalID )
• Shape__Length ( type: esriFieldTypeDouble, alias: Shape.STLength(), editable: false, nullable: false, defaultValue: null, modelName: Shape.STLength() )
• COMMENT ( type: esriFieldTypeString, alias: COMMENT, editable: true, nullable: true, length: 50, defaultValue: null, modelName: COMMENT )

Types:

ID: 1
Name: Underground
Domains:
• InstallMethod:
  Inherited
• FiberOwner:
  Inherited
• PoleOwner:
  Inherited
Templates:
• Name: Underground
  Description:
  Prototype:
  InstallMethod: 1

  Drawing Tool: esriFeatureEditToolLine

---

ID: 2
Name: Aerial
Domains:
• InstallMethod:
  Inherited
• FiberOwner:
  Inherited
• PoleOwner:
  Inherited
Templates:
• Name: Aerial
  Description:
  Prototype:
  InstallMethod: 2

  Drawing Tool: esriFeatureEditToolLine

---

ID: 3
Name: Direct Burial
Domains:
• InstallMethod:
  Inherited
• FiberOwner:
  Inherited
• PoleOwner:
  Inherited
Templates:
• Name: Direct Burial
  Description:
  Prototype:
  InstallMethod: 3

  Drawing Tool: esriFeatureEditToolLine

---

ID: 7
Name: Drop Cable
Domains:
• InstallMethod:
  Inherited
• FiberOwner:
  Inherited
• PoleOwner:
  Inherited
Templates:
• Name: Drop Cable
  Description:
  Prototype:
  InstallMethod: 7

  Drawing Tool: esriFeatureEditToolLine

---

Capabilities: Query,Create,Update,Delete,Uploads,Editing

Sync Can Return Changes: true

Is Data Versioned: true

Supports Rollback On Failure: false

Supports ApplyEdits With Global Ids: false

Edit Fields Info:

• Creation Date Field: created_date
• Creator Field: created_user
• Edit Date Field: last_edited_date
• Editor Field: last_edited_user

Supports Query With Historic Moment: false

Supports Coordinates Quantization: true

Supported Operations:   Query   Query Attachments   Query Analytic   Apply Edits   Add Features   Update Features   Delete Features   Calculate   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata
